RV Slide Out Alignment Problems: Complete Repair Guide
RV slide out alignment problems occur when the slide box does not travel evenly along its tracks, which causes the mechanism to bind or tilt. This failure often results from road vibration, loose bolts, or physical blockages like an unlatched door. If the slide is not flush with the RV wall, it creates gaps that allow moisture and pests to enter the living space. According to the Lippert Adjustment Manual, improper adjustment leads to seal gaps, water leaks, and a loss of interior insulation. Owners can find these issues by measuring the distance between the slide and the coach frame to check for a difference. Correcting these problems early prevents total motor failure and ensures the safety of your slide system.
Symptoms of RV Slide Out Alignment Problems: Uneven Gaps and Binding
RV owners often worry when their slide rooms do not move as they should. If a slide room sits crooked or gets stuck, you may have RV slide out alignment problems. These issues can cause big damage if you do not fix them fast. It is best to look for the signs early before a small gap becomes a big repair bill.
Visual signs of misaligned slide outs
The first sign of a problem is often how the room looks when it is partly open. You should look at the gaps between the slide room and the RV wall. Use a tape measure to check the space on both sides. A misaligned slide out may have one side that is half an inch off from the other side. This uneven space shows that the room is not moving straight. You may also see that one corner of the room is higher than the other corner.
Look for these visual cues while the slide is in motion or stopped:
- The top of the slide room hits the wall before the bottom does.
- One side of the room sticks out further than the other when closed.
- The slide room looks tilted when you view it from the outside.
- Wear marks or scratches appear on the floor where the room moves.
Noise and rubbing parts
When you push the button to move the room, listen for new sounds. A healthy slide should move in a smooth and quiet way. If you hear squeaks, pops, or grinding, the parts may be rubbing. These sounds often come from the gear racks and bearings that move the room. You might also notice the motor work harder than it did before. If the room jumps or catches as it moves, this is called binding. Binding puts stress on the motor and can cause it to break.
Seal gaps and water risk
Check the rubber seals around the edge of the slide room. When the room is closed, the seals should press flat against the wall. If the room is out of line, the seals will not stay tight. This can lead to water leaks and heat loss inside your coach. Taking care of your seals is a big part of preventing water damage in slides. If you see light coming in through the corners, your alignment is likely off.
Do not wait for your slide to get stuck in the open position. Catching these signs early saves time and money. For a professional RV slide alignment repair, you need a team that knows these complex systems. Our crew near Denton can check your tracks and motors to get your RV back in top shape. Call us today at (940) 488-5047 to set up a check for your slide system.
Common Causes of Slide Out Misalignment and Mechanical Stress
Finding the root of RV slide out alignment problems is the first step toward a fix. Many issues start small but grow over time due to the stress of travel. Your RV is like a house that faces a small earthquake every time you drive. This constant movement puts pressure on every part of the slide system.
Road vibration and weight shifts
Road vibration is a major cause of mechanical drift. As you drive, the shaking can loosen bolts or cause gear teeth to skip. Over hundreds of miles, even small shifts can lead to a crooked slide. Unbalanced weight also plays a role. If you store heavy items on one side of a slide room, it puts extra strain on that motor or gear rack. This uneven load makes the system work harder and can pull the room out of its track.
Physical impact and binding
One of the most common causes of sudden binding is a simple physical impact. If a cabinet door or a drawer is left open just an inch, it can hit the slide wall as it moves. This physical impact often jams the room and forces the gears to jump. You might notice the slide starts to move at an angle or stops. Checking for path blocks before you press the button is a simple way to avoid these common slide mechanism problems.
Component wear and tear
General wear and tear eventually affects every slide system. High-use parts like gear racks, bearings, and seals break down over years of use. Friction grows as lube wears off, which adds stress to the wiring and motors. A full parts inspection should check for bent teeth or worn seals that might keep the room from sitting flush. If you hear grinding or see metal shavings, it is often a sign of troubleshooting slide motor failures or gear damage that needs expert care.
How to Check and Adjust Through-Frame RV Slide Outs

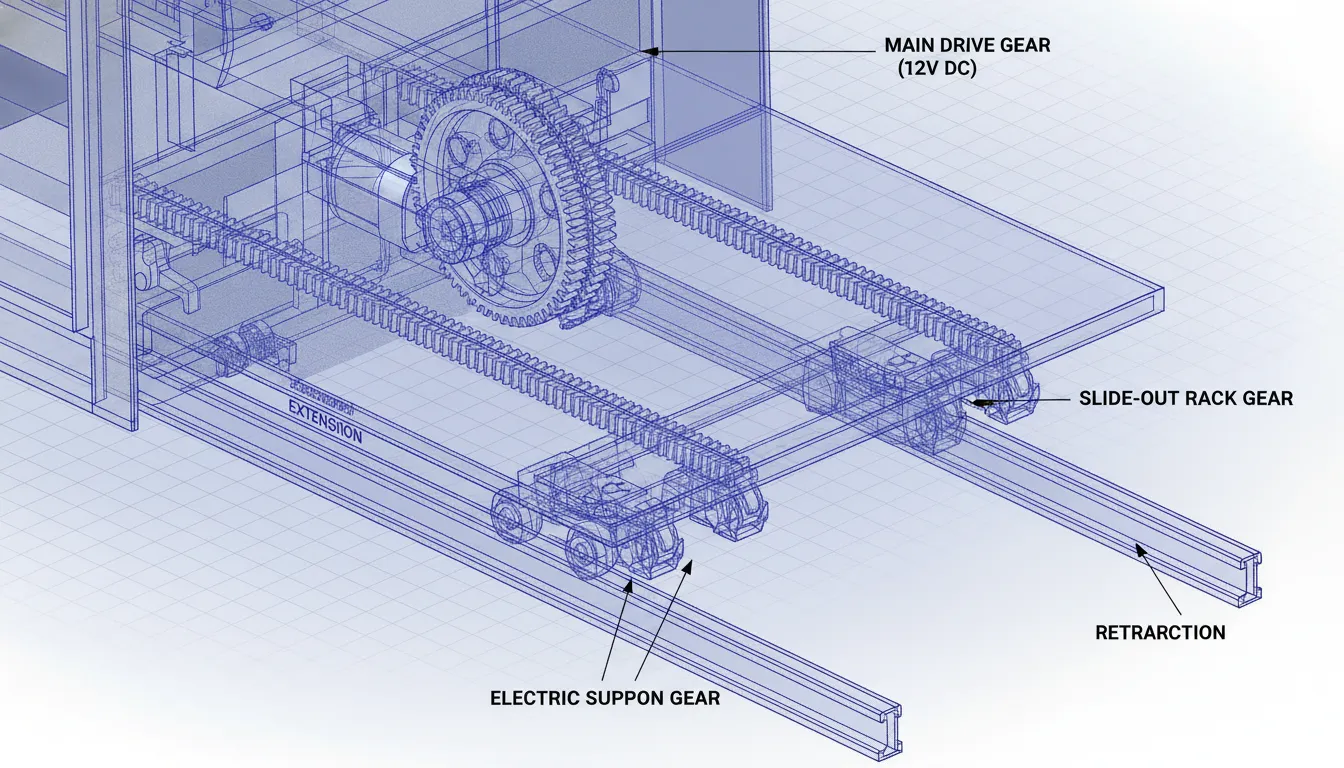

Checking your through-frame slide system is the first step to fixing RV slide out alignment problems. These heavy duty systems use a rack and pinion set to move the room. You can often spot issues by looking at the gaps around the slide box when it is closed. If the box sits crooked or does not seal tight, you may need a minor adjustment.
Prepare Your RV for Slide Service
Safety is the most important part of any DIY repair. Before you start, you must ensure the RV is level and the power is off. Working on an unlevel rig can put too much stress on the frame. This leads to false readings and could warp the slide tracks. Check your jacks and use a bubble level to confirm the coach is flat.
Once the rig is level, disconnect the battery or unplug the shore power. You do not want the motor to start while your hands are near the gears. This simple step prevents injury and protects the slide motor and wiring from electrical shorts during the check.
Check for Gaps and Flush Fit
Walk around the outside of your RV and look at the slide seals. Look for spots where the seal is crushed too flat or does not touch the wall at all. These gaps cause water leaks and let heat escape. A properly adjusted slide should sit flush against the RV side wall when fully retracted. If you see a tilt, the room is out of time or the height is wrong.
You should also check the vertical clearance. Use a tape measure to check the space between the top of the slide and the roof opening. Then check the bottom. If the numbers are not the same, the room is tilting. This tilt puts extra wear on the gear racks and bearings. Fixing this early can save you from a costly repair later.
Steps to Adjust Your Through-Frame Slide
Most through-frame systems use an actuator arm with adjustment nuts to set the room position. Use these steps to fix minor alignment issues and ensure a tight seal.
- Level the coach. Set your jacks and confirm the RV is stable before you move the slide out at all.
- Run the slide halfway. Stop the room in the middle of its travel so you can access the outer and inner adjustment points.
- Find the actuator arm. Look under the RV for the metal bar that pushes the slide. You will see two large nuts on the threaded rod.
- Adjust the horizontal fit. To fix gaps at the wall, loosen the nuts on the arm and move the room in or out until it sits flush.
- Tighten the nuts. Once the room is in the right spot, lock the nuts back into place against the bracket to hold the setting.
- Test the movement. Connect power and run the slide all the way in and out. Listen for any grinding or popping sounds.
- Verify the seal. Check the exterior walls one last time to make sure the seals are tight against the fiberglass or metal.
When to Call a Professional
Some slide systems are not safe for DIY work. If your RV uses a cable system or a Schwintek mechanism, do not try to adjust it yourself. These systems are very complex and easy to break. A small mistake can lead to a stuck slide that will not move at all. If you have these types, seek professional RV slide alignment repair right away.
It is also time to call for help if you see metal shavings near the gears. This means the teeth are grinding and the parts are failing. Professional techs have the tools to pull the room and replace worn tracks or motors safely. Do not risk your safety or your RV frame on a job that needs expert hands.
Adjustment and Repair vs. Mechanism Replacement: Upgrading for Reliability
Fixing RV slide out alignment problems starts with a clear choice. You can try to fix the old parts or swap the whole system for something new. Simple fixes work best for small issues like minor seal gaps or slow movement. But some slide designs fail so often that they need a full replacement to stay safe on the road. Knowing when to fix and when to switch is key to keeping your RV in top shape.Fixing Alignment Issues
Small gaps in your seals or slow movement might only need a small tune up. Good care of your slide out parts like motors, gear racks, and bearings keeps the unit smooth. If your slide is not flush when closed, you can adjust the nuts on the actuator arm. This simple fix seals the gaps and stops rain from getting into your coach during a storm. If you skip these small fixes, you may face water leaks and heat loss in the cabin. You should also look for common slide mechanism problems as soon as you hear strange noises. A quick fix now saves you from costly fixes to the floor or walls later. Always check that your RV is perfectly level before you start work on the slides to avoid more damage.Choosing Between Adjustment and Replacement
Not every slide issue has a simple fix that lasts for years. Some systems skip teeth on the metal tracks often due to poor design. Road shaking and heavy loads can also push a weak system out of sync. This causes binding that a basic adjustment cannot solve no matter how many times you try. In these cases, upgrading to reliable slide systems is the smartest move for your rig. Replacing the entire rack and track set ends the cycle of constant fixes. Stock systems often use thin metal or plastic parts that wear down fast under stress. If you find yourself fixing the same slide every season, a full upgrade is likely needed. This choice gives you a slide that works every time you press the button at the campsite.| Feature. | Standard Adjustment. | Vroom System Upgrade. |
|---|---|---|
| Repair Cost. | Low to moderate. | Higher first cost. |
| Durability. | Short term fix. | Long term reliability. |
| Material. | Stock plastic and steel. | CNC machined billet aluminum. |
| Manual Override. | Hard or cannot be done. | Easy manual use. |
| Best For. | Small gaps and seal issues. | Total mechanical failure. |
The Permanent Fix: Vroom Slide Systems
The Vroom Slide System is a top pick for RV owners who want a fix that lasts. These systems use CNC machined billet aluminum for high strength and a perfect fit. This metal does not bend, crack, or wear out like the cheap stock parts found in many rigs. It is built to handle the heavy stress of long travel and frequent camping trips. A Vroom Slide System upgrade gives you peace of mind with a true manual override. If the motors lose power or the wiring fails, you can still move the slide by hand to head home. This design fixes the deep flaws found in older slide brands that leave owners stuck. It is the most reliable way to end your slide headaches once and for all. Setting up a Vroom system also improves the resale value of your RV. Buyers know that a solid slide system means fewer leaks and less stress in the future. It turns a known weak point of your RV into one of its strongest features. Choosing quality parts today ensures your next trip is about fun, not fixing broken slides.Frequently Asked Questions
Does an RV warranty cover slide out alignment?
Most RV brands only cover slide out alignment for a short time. For example, Keystone often limits these fixes to the first 90 days you own the rig. After this time, you are in charge of upkeep costs. If you notice gaps or binding, check your own manual to see if your coverage is still active. Expert shops in Denton can help with repairs if your warranty has ended and you need help.
What happens if an RV slide is not aligned?
If you skip fixing crooked slides, it can lead to bad damage. Gaps in the seals let water enter the walls and floors. This causes rot and mold. It also leads to a loss of heat protection. This makes it hard to keep your RV cool or warm. As shown in the Lippert Manual, poor alignment can even cause the slide to get stuck for good. This needs a costly repair.
How do I adjust an RV slide out that is not flush?
If the section does not sit flush against the wall, you may need to move the drive arm. You can adjust the nuts on this arm to fix gaps when the slide is pushed out or pulled in. This process is just for rack and pinion systems. You can find more details on expert RV slide repair if the movement feels jerky or the gaps stay after you try to fix them.
Is it safe to fix my own RV slide out alignment?
Safety is the top concern when you work on slide systems. You must make sure the RV is level before you start. It is also vital to cut the power. This stops the motor from moving while your hands are near the gears. If the slide is heavy or the system is complex, it is safer to call a pro. As shown in the Lippert safety guides, being careful will help prevent injury or bad damage.
How can I stop repeat RV slide out alignment problems?
If your slides always lose their spot, you may need a stronger system. Many owners choose to upgrade to Vroom Slide Systems. This setup is built with tough parts that handle heavy use better than stock gear. You can find out more about a Vroom Slide System upgrade to stop these common issues for good.
Ready to Schedule Your Professional RV Slide Alignment in Denton?
Leaving slide out alignment problems alone leads to bent frames and costly water leaks that rot your RV walls and cost thousands to fix now. Fixing these issues today prevents a stuck slide from spoiling your next road trip and ensures your seals work just as they should for you. Taking action now keeps your RV safe and ready for your next big drive through the hills of Arkansas or across North Texas with us.
