RV Water Heater Troubleshooting Guide for North Texas Owners
A freezing shower in your motorhome on a cold North Texas morning is a clear sign of trouble. Contact Patriots RV Services at (940) 488-5047 for professional diagnosis. Simple troubleshooting steps can prevent permanent tank damage.
Effective rv water heater troubleshooting starts by checking the active power source, verifying water bypass valves, and inspecting the safety limit switches. If your burner does not light on propane, check for a clogged gas orifice, a dirty burner tube, or a tripped high-limit switch. When using electricity, make sure the 120-volt breaker is on, the heater switch is active, and the tank is completely full of water. In North Texas, local hard water causes rapid scale buildup and severe tank corrosion if you do not maintain the system. You should flush the tank and replace its sacrificial anode rod every six to twelve months to protect the steel tank from rust.
Finding the root cause of your hot water failure can seem difficult at first. Start your diagnostic journey by understanding how these units operate. We will show you how the key components function. The path begins with a clear look at the three main system types and what powers them.
RV Water Heater Troubleshooting: Understanding Your RV Water Heater System

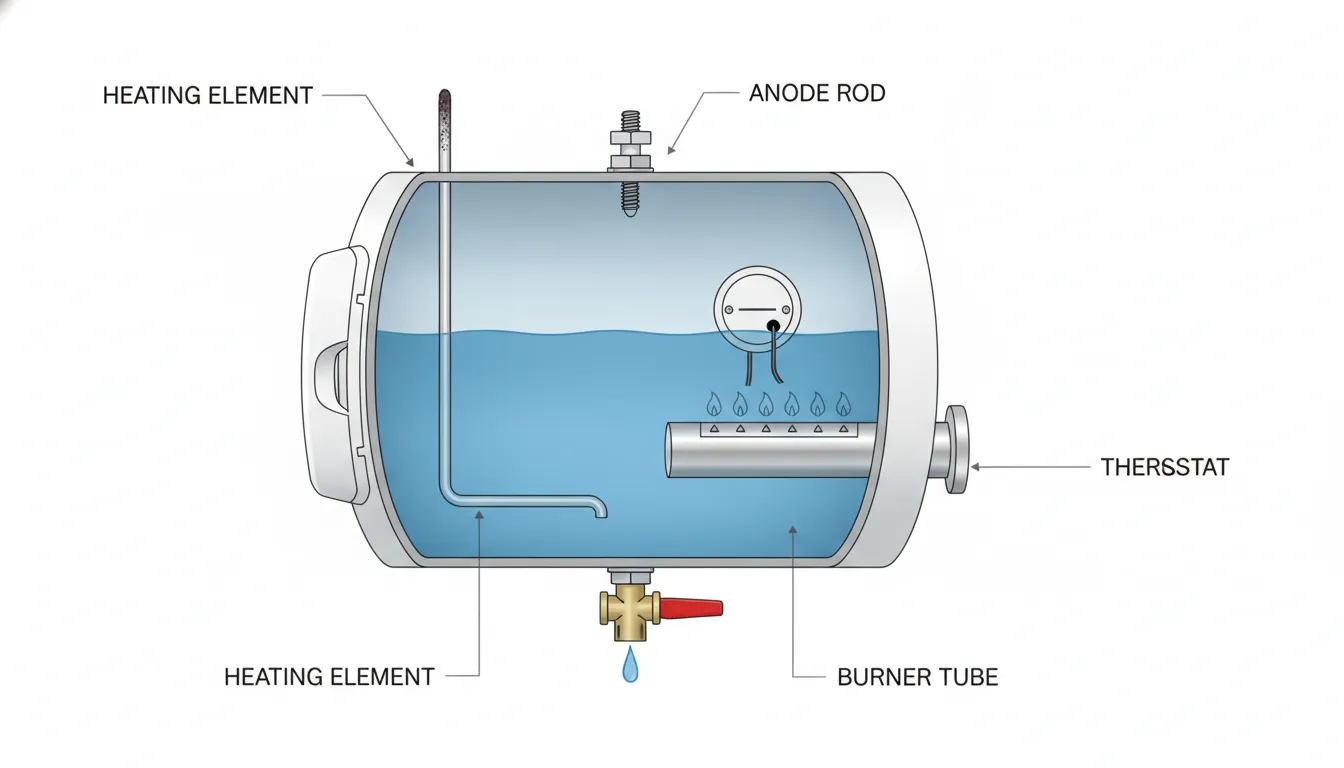

Every RV owner must know how their water heater works. This knowledge is crucial for proper rv water heater troubleshooting and maintenance. Most RV water heaters run on gas, electric power, or both. We call these systems gas-only, electric-only, or dual-source. Dual-source models use both propane and a 120V AC heating element. When you know your system type, you can find faults faster.
RV Water Heater Power Sources
Most RV systems use a steel tank to hold water. These tanks range in size from 6 to 12 gallons. If you have a dual-source unit, you can run it on propane gas. You can also run it on a 120V AC electric line when you plug into shore power. Some models allow you to run both sources at once. This dual use helps heat your water faster. If your tank is empty, never turn on the electric switch. Running the system on an empty tank will burn out the heating element.
If your water heater fails to heat, a faulty high-limit or emergency cut-off (ECO) switch could be the cause. These safety devices monitor the heat inside your tank. If the heat rises too high, the ECO switch cuts off the power source. You can often reset these switches on the front panel of the heater.
Leading Brand Systems and Capacities
Three brands lead the RV market. Suburban makes popular tank models such as the Suburban Advantage 5146A/F. This 12-gallon tank uses dual thermostats for heating. Dometic is another main brand. They bought Atwood in September 2014, but many Atwood designs are still on the road. For tankless systems, Furrion is a common brand. Furrion tankless models, like the FWH09AFA, offer a continuous flow of hot water. If your system leaks or fails to heat, seek professional RV water heater repair to protect your coach.
Tank Versus Tankless Water Heaters
RV owners often choose between standard tank heaters and tankless units. Standard tanks store and heat a set volume of water. They need regular maintenance, like checking the anode rod. Tankless units heat water on demand using a gas burner. No matter your choice, you must keep proper airflow and clearance around the outer appliance door. This venting is vital for propane safety and unit lifespan. Let's compare the key traits of both setups.
| System Type | Fuel Type | Recovery Rate | Maintenance Complexity | System Lifespan |
|---|---|---|---|---|
| Gas-Only Tank | Propane | 10 gallons per hour | Moderate (needs anode checks) | 10 to 12 years |
| Electric-Only Tank | 120V AC electricity | 6 to 8 gallons per hour | Low (requires regular flush) | 10 to 15 years |
| Dual-Source Tank | Propane and 120V AC | 14 to 18 gallons per hour | Moderate (needs anode checks) | 10 to 12 years |
| Tankless Gas | Propane | Continuous on demand | Low (requires annual descaling) | 15 to 20 years |
When choosing a replacement, consider your camping style. Boondockers often prefer tankless propane systems for infinite hot water without shore power. But those who frequent RV parks with full hookups may favor dual-source tank models to save on propane costs.
Common RV Water Heater Problems and Diagnostic Steps
When your water heater stops working, you must find the cause of the failure. To make a correct fix, you must see if you have no hot water, lukewarm water, or physical leaks.
Step-by-step diagnostic workflow
You can find most faults by following a clear check. This path helps you test each part from the simplest fix to the deepest wire fault.
- Check that your fresh water tank is full and the water heater bypass valves are set to run. If you run the system with a dry tank, you will burn out and damage the heating element.
- Check the main power switches and breakers inside your cabin. When using the electric mode, check the 120V AC breaker and the heating switch on the heater itself.
- Inspect the safety switches inside the outer access door. If the high-limit switch or the ECO switch has tripped, press the reset buttons on the rubber cover.
- Check the gas flame supply and spark igniter. If the burner fails to light, check for a clogged burner orifice, lack of propane, or spider webs in the tube.
- Check the unit for water leaks at the pipe connections, the drain plug, and the pressure relief valve. If you see damp spots, search the steel tank for cracks.
Electrical supply and safety switches
When you start your basic RV water heater troubleshooting, you may find that the unit is dead silent. Dual-source heaters like the Suburban model 5146A/F use both 120V AC and 12V DC power. A blown 15-amp DC fuse will cut power to the gas control board and stop ignition. Always test your fuses with a meter to ensure they are working.
If the electric mode fails but the gas works, the issue is on the high-voltage side. Check the 120V AC circuit breaker in your RV breaker box first. If the breaker is on, the heating element may be burnt or the high-limit switch is bad. Running the system without water in the tank will quickly burn out the element and ruin it.
Burner malfunctions and fuel delivery
A gas burner that fails to light is often caused by fuel blockage or air flow issues. Propane systems need correct pressure and clean tubes to burn safely. Spiders are drawn to propane and often spin nests inside the metal burner tube, blocking the air mix. Clean the tube with a small brush before each trip.
You must also check the system for water leaks. Water leaking from the tank or pipe connections can quickly cause dry rot. Watch for soft floors or other RV plumbing system leaks to prevent rot. Regular checking of the Temperature and Pressure (T&P) relief valve is also critical to prevent dangerous pressure build-up inside the tank.
Preventive Maintenance Schedule for RV Water Heaters
An RV water heater needs steady care to prevent major breakdowns. Routine service is a key part of rv water heater troubleshooting to keep your system running. In North Texas, mineral-rich water makes this service even more vital. Hard water can cause quick wear and damage to your steel tank if you do not act fast.
Anode Rod Inspection and Replacement
You must check the sacrificial anode rod every six to twelve months to protect your steel tank from rust. Frequent anode rod inspection is essential for preventing tank corrosion in steel water heater tanks. These rods attract corrosive minerals so that the tank does not rust. Once the rod wears thin, those minerals will start to eat the steel walls of your heater.
Anode rod replacement intervals depend on water quality in your frequent camping areas. Water hardness in different North Texas locations can impact the rate of scale build-up in the RV water heater tank. If you camp in parks with high mineral levels, you may need to replace the rod twice a year. Ignoring a worn rod will lead to a ruined tank and a costly repair bill.
Flushing the Tank and Burner Upkeep
You should flush the tank twice per year to wash out loose scale and mineral sediment. Over time, minerals build up on the bottom and block heat. This thick scale makes the system work much harder. As a result, you will get less hot water and higher fuel bills. A quick flush keeps your system running at peak performance.
Maintaining the burner assembly ensures maximum efficiency and safe operation of gas water heaters. You must check the burner tube and gas orifice for clogs. Rust, dirt, or spider webs can block the gas flow. Inspecting the water heater door and seals ensures no insects or debris block the airflow or venting. Use a soft brush to keep the flame bright blue and steady.
Use this quick list to track your heater upkeep:
- Check the anode rod for wear every six months.
- Flush out tank sediment twice each year.
- Test the pressure relief valve once a year.
- Clean the burner tube to remove dirt and webs.
Annual Safety Tests and Seasonal Prep
Your water heater needs seasonal prep. Like managing your RV AC system care, you must protect your plumbing from cold weather. Routine water heater winterizing prevents tank freezing and cracking in cold climates. A water heater bypass kit is recommended for simplifying the winterizing process. You can use this kit to winterize your RV in just a few minutes. In the spring, run these checks again.
Test the relief valve once a year. Regular maintenance of the Temperature and Pressure (T&P) relief valve is critical to prevent dangerous pressure build-up. You can read safety standards on the Department of Energy site to learn more. To test the valve, lift the metal handle. Water should flow out of the drain pipe before you snap it shut to check the seal.
How to Flush Your RV Water Heater Tank and Replace the Anode Rod
The Role of the Anode Rod
Routine water heater care keeps your plumbing system clean and safe. If your hot water has a bad smell, bacteria may be growing in the tank. A full flush can clear this smell and remove old buildup before it causes RV plumbing system leaks.
A steel water tank needs to be safe from rust. An anode rod attracts minerals that would rust the steel tank walls. Because of this, the rod wears out over time instead of your tank. Checking this rod is a key step in rv water heater troubleshooting.
Steps for Tank Flushing
Flushing your tank takes only a few tools and some basic steps. Follow this guide to clean the tank and swap the rod safely.
- Turn off power and gas: Always shut off the gas supply and power before you start any work to stay safe. Let the water cool completely so you do not get burned.
- Open the pressure relief valve: Lift the handle on the Temperature and Pressure (T&P) valve at the top of the tank. This lets air in and releases pressure to prevent hot water from spraying out. Regular valve checks follow water heater safety standards.
- Remove the drain plug and anode: Use a socket wrench to unscrew the plug or rod at the bottom. Stand to the side as the water drains out. The old rod may look thin and chewed up compared to a new one.
- Flush the tank: Insert an RV tank rinsing wand into the drain opening. Turn on the hose water to wash out sediment, lime flakes, and scale. Keep flushing until the water runs clear.
- Choose a new rod: Select a magnesium rod for standard water or an aluminum rod if you deal with hard water. If you often smell rotten eggs, bacteria growth in the tank is the cause. You must sanitize the system to kill the bacteria and clear the odor.
- Install the new anode rod: Wrap Teflon tape clockwise around the threads of the new rod. Thread it in by hand first, then tighten it with your socket wrench. Do not overtighten it to avoid stripping the threads.
- Refill the tank and test: Close the relief valve and turn on the water supply. Open your hot water faucets inside the RV to bleed out trapped air. You must fill the tank all the way before turning on the power, as running it empty will damage the heating element.
Winterizing and Maintenance Tips

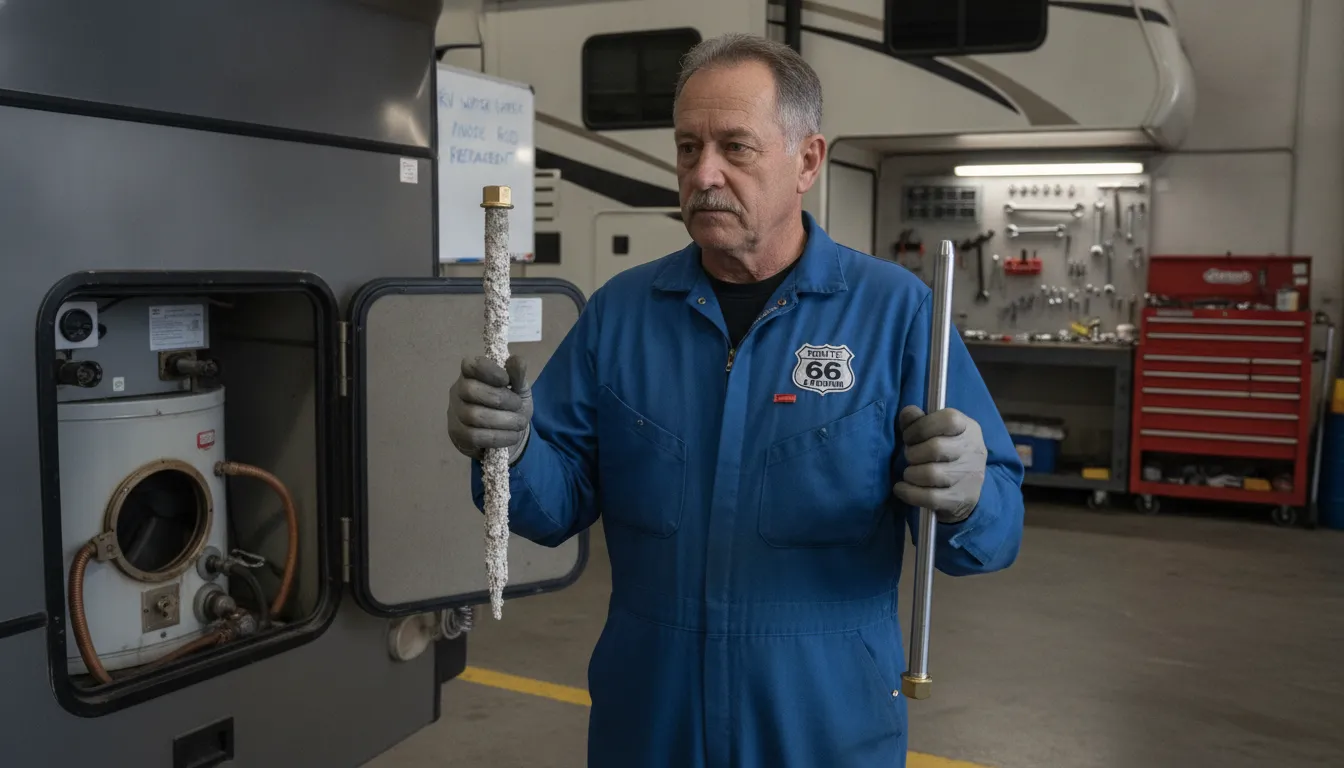

When you pull the anode rod out, compare it to a brand new one. If the rod has lost more than half of its metal, you must change it. Doing so protects your steel tank and stops bad leaks.
This image shows when you should replace the rod:
Routine care helps you avoid major water system issues during freezing weather. We highly recommend that you set up a water heater bypass kit. This kit lets you bypass the tank to winterize your RV water system without wasting costly fluids. Doing this protects your plumbing from freeze damage and makes yearly maintenance much simpler.
Tankless vs. Tank Water Heaters: Pros and Cons for RV Owners
Choosing the right water heater for your rig makes a big difference. Standard tanks and on-demand systems each have good and bad points. If you plan to upgrade or need a new unit, you must weigh how each type works. Knowing these details helps when you face issues and need professional RV water heater repair to keep your system running.
Standard Tank Systems
Classic tank water heaters hold between 6 and 12 gallons of hot water. These systems have a low upfront cost and are simple to set up in most rigs. They heat water using propane, 120-volt AC power, or both. Once the tank is hot, it gives a steady flow of hot water at the tap.
But tank heaters have clear limits, as you only get a set amount of hot water before the tank runs cold. Once empty, you must wait for the unit to heat a new batch. These tanks are heavy, take up more space, and suffer from standby heat loss that wastes fuel. They also need routine anode rod checks to stop tank rust and hard water scale.
On-Demand Tankless Systems
Modern tankless water heaters heat water only when you turn on the tap. Systems like the Furrion FWH09AFA line give endless hot water and take up little space. Since they do not store water, they have no standby heat loss, which saves a lot of fuel. They are also much lighter than tank systems.
On the downside, tankless systems cost more to buy and need more gas or power to heat water fast. They also react to water flow, and a low flow rate can cause a cold water sandwich. When things go wrong, these smart units show complex error codes. If you run into these codes, basic rv water heater troubleshooting can be tricky, and you may need expert help to fix the system.
North Texas Hard Water Impact
Whether you choose a tank or tankless heater, North Texas hard water can scale up heat coils. To stop damage, you must do yearly descaling on tankless systems. For any unit, you must make sure there is proper clearance for venting and airflow. If you have check valves, add an expansion tank as backed by federal energy guidelines.
| System Type | Hot Water | Upfront Cost | Size and Weight | Upkeep Needs |
|---|---|---|---|---|
| Tank Heaters | Limited to tank size. | Lower price to buy. | Heavy and bulky. | Anode checks and flushes. |
| Tankless Heaters | Endless on demand. | Higher price to buy. | Light and compact. | Annual coil descaling. |
When to Call a Professional RV Service Technician in North Texas
Basic RV water heater troubleshooting can resolve minor issues, but some problems are too unsafe or complex for DIY repairs. System faults involving gas lines, high-voltage wiring, or severe leaks need expert care to keep your coach safe. You can check our full RV maintenance checklist to see which tasks are safe for owners. Contact Patriots RV Services at (940) 488-5047 for professional diagnosis.
Gas and Propane Safety Warnings
Propane systems pose high fire risks if handled wrong. Propane-powered water heaters need proper venting to function safely, as a blocked exhaust can cause a fire. If you suspect a gas leak in your RV's water heating system, turn off the propane immediately and contact a professional. An expert can safely find leaks and do a professional RV water heater repair at our shop. You should get a professional inspection if you are unsure about handling gas-powered appliances in your RV.
Electrical System Failures
Electrical issues often go beyond a blown fuse. If your high-limit or ECO switch trips often, it shows a deeper fault that could cause the tank to get too hot. Testing or changing these switches needs a meter and clear knowledge of RV wiring. Changing a burned element also needs special tools to prevent tank damage. Working with high voltage can cause severe shock or fire if done wrong. Our repair shop in Denton can safely fix these electrical faults without risking your safety.
Pressure Valve and Water Leaks
Water leaks and pressure issues can quickly ruin your coach. Regular maintenance of the Temperature and Pressure (T&P) relief valve is vital to prevent unsafe pressure build-up. If your valve drips all the time, the tank may have a pressure problem that needs expert tools to solve. You can find safety rules on valve plumbing from the Department of Energy. If the tank is cracked or leaks from the bottom, you may have hidden RV plumbing system leaks. Our Denton team can find and fix these leaks before they cause wood rot.
Frequently Asked Questions
Why is my RV water heater not working on gas?
Your gas RV water heater might not work due to a lack of propane or a clogged burner orifice. First, check your propane tanks to ensure they are not empty. If you have gas, soot or insects could block the burner tube or gas jet. You can check the burner assembly for debris. If the gas valve is bad or the spark electrode fails, you should contact a professional. Our team can fix your system safely.
Is there a reset button on an RV water heater?
Yes, many dual-source tank models have a high-limit reset button on the outside of the unit. This part is also called the ECO switch. It shuts off the system if the water gets too hot. To reset it, turn off all power first. Open the outer door and find the rubber cover over the reset buttons. Push the buttons firmly. If the button trips again right away, you may need a new switch.
Why does my RV water heater smell like rotten eggs?
A rotten egg smell is usually caused by sulfur-producing bacteria in your water tank. This happens when the tank sits idle with water inside. The bacteria react with the magnesium or aluminum in your anode rod. To fix this, you must flush the tank. You should also sanitize the system with a mix of water and vinegar. Doing this task twice a year helps keep your water fresh.
How often should I maintain my RV water heater?
You should inspect and clean your RV water heater at least twice a year. If you camp in North Texas, the hard municipal water can cause fast scale buildup. You should check the anode rod every six months and replace it when it is seventy percent worn. Flushing the tank every six months will clear out scale. This simple chore keeps the heating element working and extends the life of your steel tank.
